Operating the Smart Thermostat

Prerequisites:

  • System Manager is in Operation mode.
  • In System Browser, Logical View is selected.



Step:

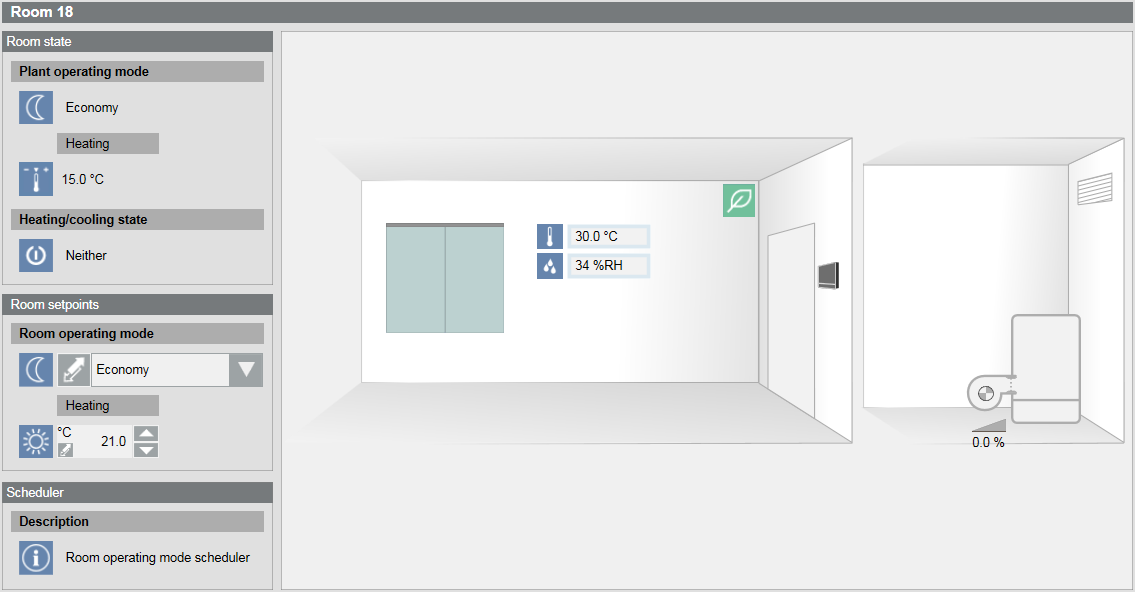

  • In the System Browser or floor plan view, select the room to operate. The graphical view is based on the applied configuration.



Changing Operating Mode
  1. Select Room setpoint.
  1. In the Room operating mode drop-down list, select option:
    - Comfort
    - Economy
    - Pre-Comfort
    - Protection
  • The value is immediately written to the automation station.



Changing a Setpoint
  1. Select Room setpoint.
  1. In the Room operating mode drop-down list, select option: Heating.
  1. Enter the new setpoint or use the up or down buttons.
  • The value is immediately written to the automation station.



Enabling a Manually Entered Value
  1. Select Room setpoint.
  1. Click .
  • The manually entered value is taken over again by the automatic.



Displaying Scheduler Program
  1. Select Scheduler Program.
  1. Click .
  • Displays information on the entered switching times.
