A plant operator tableau includes the most important information to control a plant. The operating state, setpoints, or output can be easily operated. NOTE: This function is not available on all projects.
Open Plant Tableau
In System Browser, select Application View.
Select Applications > Graphics > [graphics page]. NOTE: The plant tableau opens when the graphic page is configured as the first page to be opened.
The plant tableau opens as follows if the plant page is opened:
If the plant graphic is opened, click .
If the plant graphic is opened, click the Related items tab. a. Select Graphics. b. Click the link for the plant tableau.

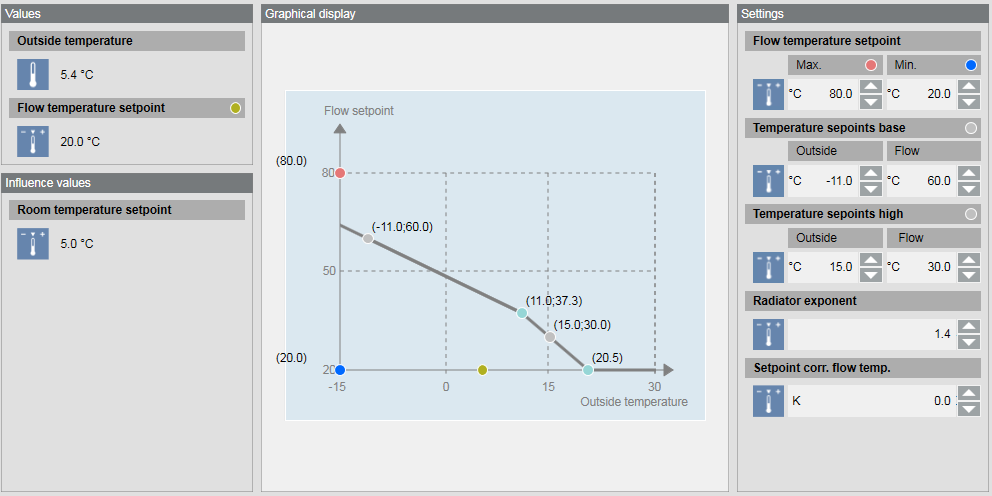

The plant table displays.
Control the Plant
Select the appropriate plant switch.
In the drop-down list, select option Off, On, Auto, Stage 1, Stage 2.
The selected value is executed directly.
Changing a Setpoint
Select the appropriate setpoint.
Enter a new value.
The entered value is executed directly.
Switching Output
Manual switching is written at BACnet priority 8.
Select the appropriate output.
In the drop-down list, select option Off, On, Stage 1, Stage 2.
The selected value is executed directly. NOTE: Switching can only be executed as long as no security functions are pending.
Release Output
Manual switching is released at BACnet priority 8.
Select the appropriate output.
Click .
The output is released. The application program exercises control.
.
.
